EVAMCSG™ - Airport Apron

Specifications	Values
L x W x H (mm)	8645×2965×1565
Max. Gradabillity	≥25%
Wheelbase (mm)	7280
Front/Rear Overhang (mm)	2900/3465
Approach/Departure Angle	7/7
GVW (kg)	21000
Driver's position	LHD/RHD
Key Component Specifications
Motor Specs	PMSM，2×95kw/2×160kw，2×220/2×580Nm，8000rpm
Inverter	A system integrated by four component (DC/DC, DC/AC, PDU)
Motor Controller	Integrated, water-cooled controller
Battery Specs	LFP，2P189S/608.58V/346Ah/210.56kWh
Charging	CCS2 with 1(one) charging port，200A/1000V-EU
Axles (Front, Support & Rear)	Low floor type, rigid axle，8.5T，disc brake Low floor type Electric Portal axle，13T，disc brake
Electric air compressor	Electrical, Oil Free Piston，3kW
Steering Pump	Electric dual source，3kW
Braking system	Pneumatic dual-circuit service braking. Energy storage spring parking braking WABCO ECAS, ABS Equipped
Suspension System	2/4 air suspension, cylindrical shock absorber, with sway bar

Specifications

Values

L x W x H (mm)

8645×2965×1565

Max. Gradabillity

≥25%

Wheelbase (mm)

7280

Front/Rear Overhang (mm)

2900/3465

Approach/Departure Angle

7/7

GVW (kg)

21000

Driver's position

LHD/RHD

Key Component Specifications

Motor Specs

PMSM，2×95kw/2×160kw，2×220/2×580Nm，8000rpm

Inverter

A system integrated by four component (DC/DC, DC/AC, PDU)

Motor Controller

Integrated, water-cooled controller

Battery Specs

LFP，2P189S/608.58V/346Ah/210.56kWh

Charging

CCS2 with 1(one) charging port，200A/1000V-EU

Axles (Front, Support & Rear)

Low floor type, rigid axle，8.5T，disc brake
Low floor type Electric Portal axle，13T，disc brake

Electric air compressor

Electrical, Oil Free Piston，3kW

Steering Pump

Electric dual source，3kW

Braking system

Pneumatic dual-circuit service braking. Energy storage spring parking braking WABCO ECAS, ABS Equipped

Suspension System

2/4 air suspension, cylindrical shock absorber, with sway bar

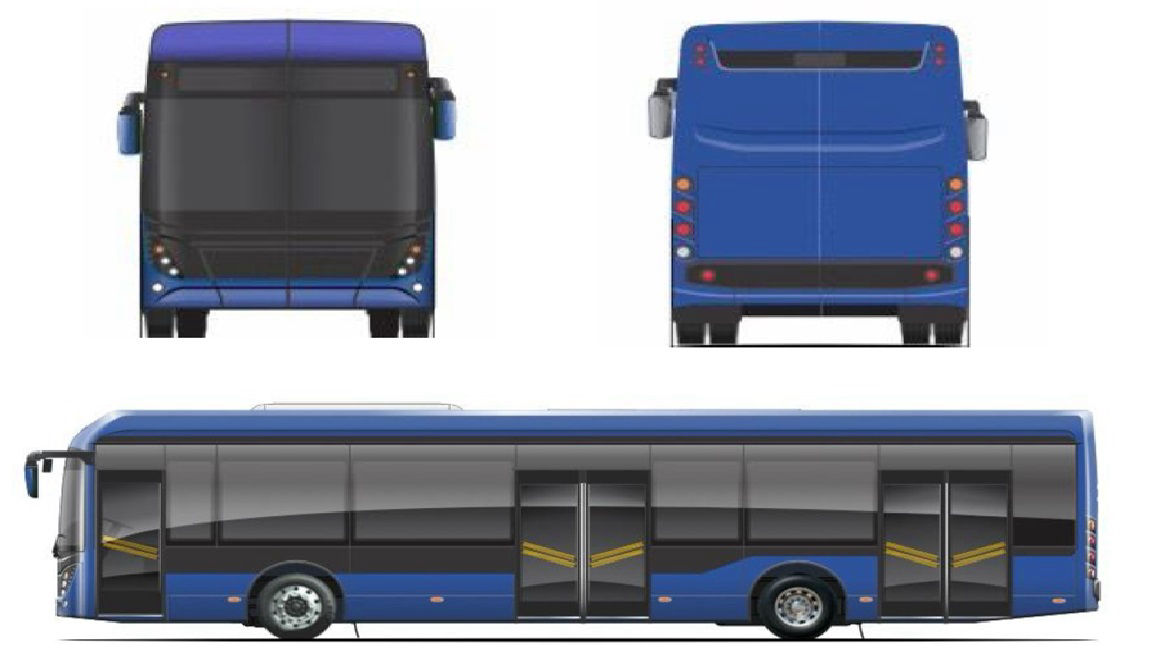

General
Product Type MD 12E NF Apron Bus
Product Classification E-Bus, 12 meters, Low Floor
Max Speed (Km/h) 70 Km/h
Max Gradeability (Gradient) 20%
Mileage Range 200 Km/charge
Charging Time 2 Hours (20%-100%)
Socket Plug In CCS2
Motor
Model MD1000ST+; IP67
Type PMSM (Permanent Magnet Synchronous Motor)
Power 200 Kw (Peak)
Torque 1600 Nm
Dimensions
Wheel Base 6100 mm
Length12000 mm
Width 2450 mm
Height 3650 mm
Overhang Fr 2728 mm
Overhang Rr 3172 mm
Min Ground Clearance 199m
Battery
Type LiFePo; IP68
Specification 608.58 V 519 Ah
Capacity 303,40 Kwh

EVAMCSG™ Airport Apron
