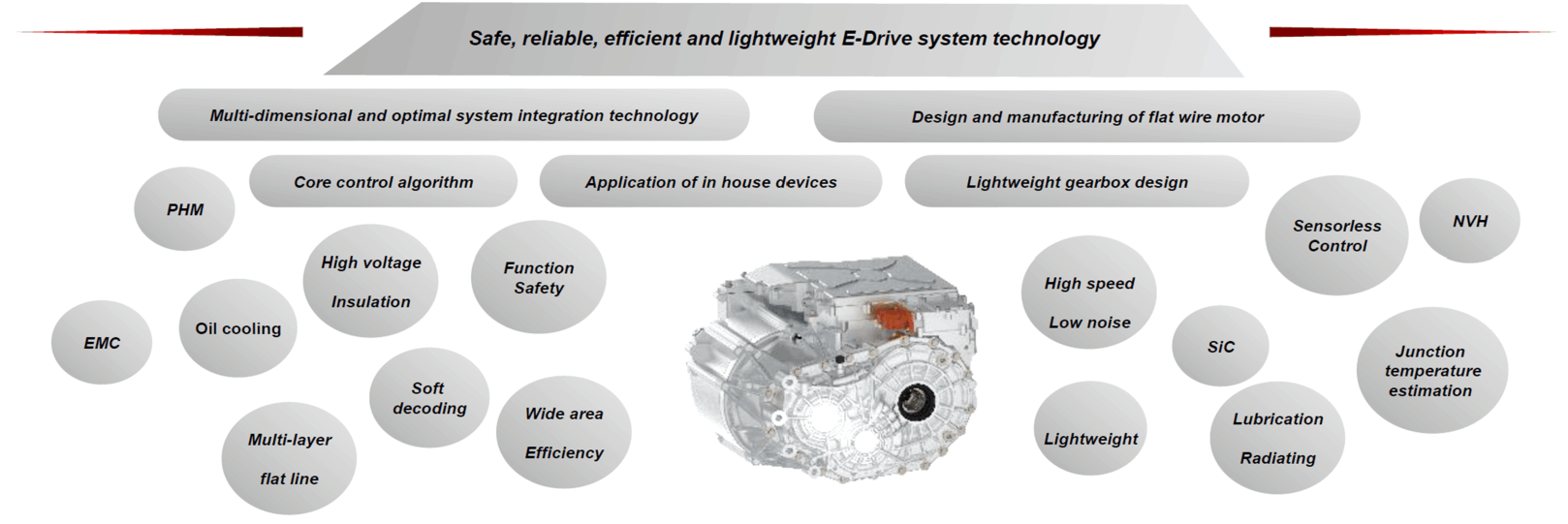

Powertrain technology from the global leader in manufacture of independent e-drive system

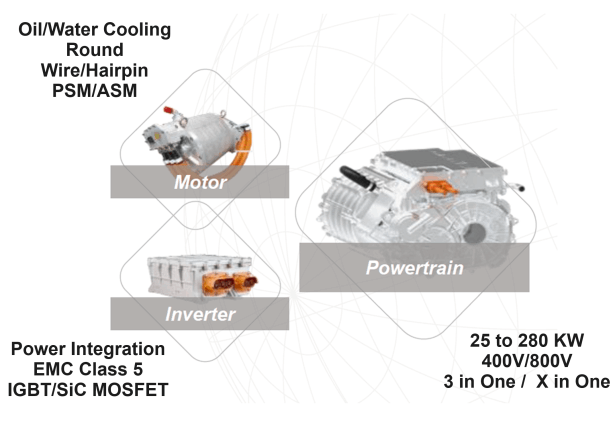

- Types include DC Series, Permanent Magnet Synchronous Motor (PMSM), Brushless DC (BLDC), 3-Phase AC induction motor, Switch Reluctance Motor (SRM)
- Product range from 25KW to 280KW capable of powering pickup trucks to heavy duty trucks (>10T) with voltage range of 200 to 800V systems
Rated Voltage/VDC: 540
Rated/Peak Power (kW): 80/160
Rated/Peak Speed (rpm): 1910/4500
Rated/Peak Torque (N-m): 400/ 1000
Overall dimensions (mm): Ⴔ
Weight (Kg): 115
Protection Grade: IP68
Application Scenario: 10-12t
Rated Voltage/VDC: 540
Rated/Peak Power (kW): 120/180
Rated/Peak Speed (rpm): 2292/4500
Rated/Peak Torque (N-m): 500/1000
Overall dimensions (mm): Ⴔ508*415
Weight (Kg): 140
Protection Grade: IP68
Application Scenario: 18t
Rated Voltage/VDC: 618
Rated/Peak Power (kW): 250/360
Rated/Peak Speed (rpm): 1956/3500
Rated/Peak Torque (N-m): 1220/2500
Overall dimensions (mm): Ⴔ520*462
Weight (Kg): 235
Protection Grade: IP68, IP6K9K
Application Scenario: 25-80t
Rated Voltage/VDC: 618
Rated/Peak Power (kW): 270/420
Rated/Peak Speed (rpm): 1719/3500
Rated/Peak Torque (N-m): 1500/2600
Overall dimensions (mm): Ⴔ520*507
Weight (Kg): 265
Protection Grade: IP68, IP6K9K
Application Scenario: 25-80t
Rated Voltage/VDC: 618
Rated/Peak Power (kW): 350/500
Rated/Peak Speed (rpm): 1671/3500
Rated/Peak Torque (N-m): 2000/3200
Overall dimensions (mm): Ⴔ520*552
Weight (Kg): 300
Protection Grade: IP68, IP6K9K
Application Scenario: 90t
Rated Voltage/VDC: 525
Rated/Peak Power (kW): 80/130
Rated/Peak Speed (rpm): 1528/3000
Rated/Peak Torque (N-m): 500/1000
Overall dimensions (mm): Ⴔ558*383
Weight (Kg): 185
Protection Grade: IP68
Application Scenario: P2 hybrid
Continuous Power: 300kW
Peak Power: 60kW
Continuous Torque: 100Nm
Peak Torque: 220Nm
Maximum Rotational Speed: 9,000rpm
Continuous Power: 50kW
Peak Power: 100kW
Continuous Torque: 160Nm
Peak Torque: 350Nm
Maximum Rotational Speed: 7,000rpm
Continuous Power: 50kW
Peak Power: 100kW
Continuous Torque: 1,518Nm
Peak Torque: 3,321Nm
Maximum Rotational Speed: 7,000rpm
Single Speed Reducer: 9.49
Continuous Power: 60kW
Peak Power: 120kW
Continuous Torque: 435Nm
Peak Torque: 950Nm
Maximum Rotational Speed: 12,000rpm
Single Speed Reducer: 3.043
Continuous Power: 90kW
Peak Power: 160kW
Continuous Torque: 900Nm
Peak Torque: 2,100Nm
Maximum Rotational Speed: 3,000rpm
Continuous Power: 120kW
Peak Power: 240kW
Continuous Torque: 1,200Nm
Peak Torque: 2,800Nm
Maximum Rotational Speed: 3,000rpm
Continuous Power: 230kW
Peak Power: 370kW
Continuous Torque: 2,150Nm
Peak Torque: 4,480Nm
Maximum Rotational Speed: 4,500rpm
2-Speed Transmission: (2.98/1)
No Power Interruption during gear shifting
Continuous Power: 120kW
Peak Power: 240kW
Continuous Torque: 1,200Nm
Peak Torque: 2,800Nm
Maximum Rotational Speed: 3,000rpm
Continuous Power: 225kW
Peak Power: 335kW
Continuous Torque: 2,400Nm
Peak Torque: 5,070Nm
Maximum Rotational Speed: 3,500rpm
2-Speed Transmission: (2.98/1)
No Power Interruption during gear shifting
